Ladle Spraying Device

Ladle Spraying Device

Purpose After each ladle tilting, the spraying device is used to spray the coating material inside the ladle to facilitate subsequent tilting operations.
Ladle Temperature Approximately 230℃ Ladle Size 4m³ (height 1.8m), 6m³ (height 2m)
Driving Method The mixing tank is motor-driven. The cylinder lifting system allows spraying for two types of ladles. The cantilever is manually driven by a steel wire rope and can rotate.
Spraying Material Barium sulfate aqueous solution, 200～400 mesh Spray Nozzle Flow Rate ＞20L/min
Equipment Weight Total equipment weight: approximately 1,900kg, heaviest component weight: approximately 1,200kg
Power Supply Control voltage: 220V/50Hz, installed power: approximately 2kW, power consumption: approximately 2kW
Compressed Air Pressure: 0.6～0.8MPa, Consumption: 1.2Nm³/min
Tap Water Consumption: 33.9L/min, Maximum temperature: 42℃

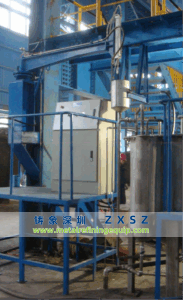

Ladle Spraying Device1
Ladle Spraying Device1

Here are the FAQs (Frequently Asked Questions) about the ladle spraying device:

  1. 1. What is the main purpose of the ladle spraying device?

    Answer: After each ladle tilting operation of the copper ladle, this spraying device is used to spray coating material inside the copper ladle, facilitating subsequent tilting operations of the copper ladle.


    2. What is the temperature range of the copper ladle? What specifications of copper ladles is the device suitable for?

    Answer: The temperature of the copper ladle is approximately 230℃; the device is suitable for two specifications of copper ladles, namely 4m³ (with a height of 1.8m) and 6m³ (with a height of 2m).


    3. What is the driving method of the device?

    Answer: The agitation tank is motor-driven; cylinder lifting is adopted to perform spraying on the two specifications of copper ladles respectively; the cantilever is driven by manual pulling of a steel wire rope and can rotate.


    4. What is the spray coating material used for spraying? Are there any specification requirements?

    Answer: The spray coating material is a barium sulfate aqueous solution, with a mesh size range of 200-400 mesh.


    5. What is the flow rate of the spray nozzle?

    Answer: The flow rate of the spray nozzle is more than 20L/min.


    6. What is the quality of the equipment?

    Answer: The total weight of the equipment is approximately 1,900kg, and the weight of the heaviest component is approximately 1,200kg.


    7. What are the power supply requirements?

    Answer: The control voltage is 220V/50Hz, the installed power is approximately 2kW, and the power consumption during equipment operation is also approximately 2kW.
