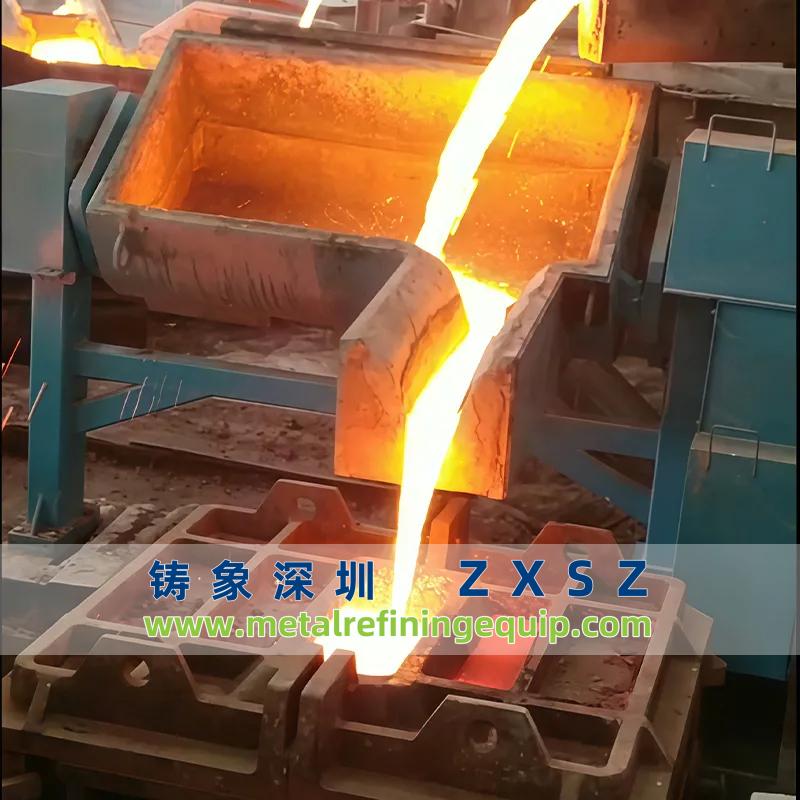

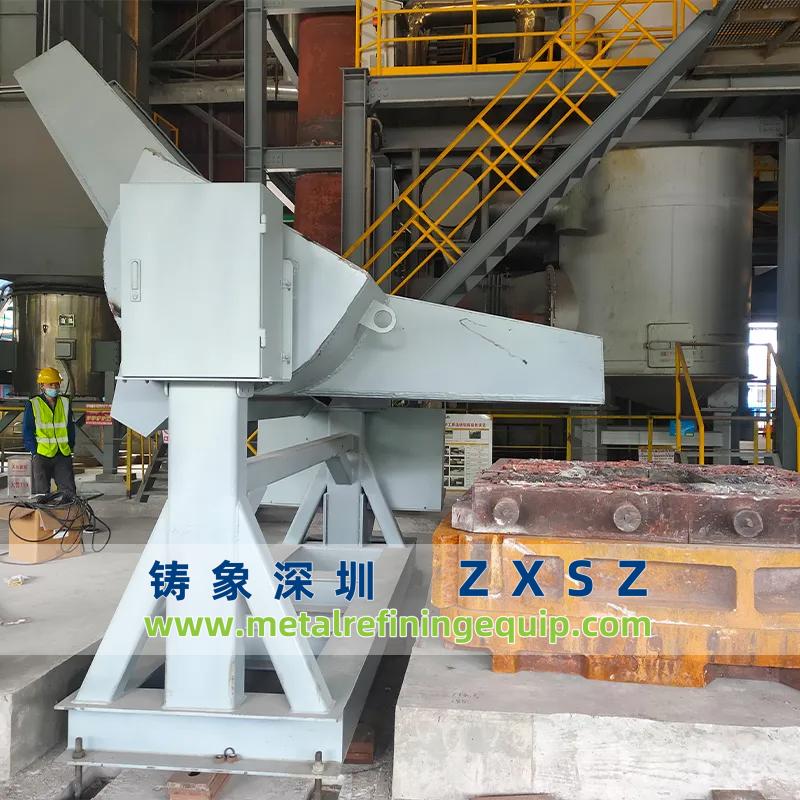

Copper Mold Casting System
Copper Mold Casting System

Copper Mold Casting System

Properties of Operating Medium Molten anode copper, Temperature: ~1250℃, Minimum 1150℃
Tundish Volume Not less than 5 tons of copper liquid Tundish Tilting Angle 0～28° (Adjustable)
Tundish Operating Speed 0～6.0rpm (Adjustable) Casting Time per Copper Mold 3～5min
Tundish Driving Method Servo motor + reducer Remote Control Range 30m
Installed Capacity ～3kw Control System PLC control
Power Supply Main power supply: AC380V±10% TN-S, 50HZ±1
Operation Mode Manual control (two operation modes: wireless remote control and operation platform operation)

FAQs about the Copper Mold Casting System

1. What is the operating medium of the copper mold casting system? What is its temperature range?

Answer: The operating medium is molten anode copper. Its temperature is approximately 1250℃, with a minimum of 1150℃.


2. What is the volume requirement for the tundish? What is the tilting angle range?

Answer: The tundish volume is not less than 5 tons of copper liquid; the tundish tilting angle ranges from 0° to 28° (adjustable).


3. What is the operating speed range of the tundish? How long does it take to cast a single copper mold?

Answer: The tundish operating speed ranges from 0 to 6.0 rpm (adjustable); the casting time for a single copper mold is 3–5 minutes.


4. What driving method does the tundish use? What is the control range of the remote controller?

Answer: The tundish is driven by “servo motor + reducer”; the control range of the remote controller is 30 meters.


5. What is the installed capacity of the system? What control system is used?

Answer: The installed capacity is approximately 3 kW; the control system is PLC control.


6. What are the power supply requirements for the system?

Answer: The main power supply is AC380V ±10%, TN-S system, with a frequency of 50Hz ±1.


7. What operation methods does the system support?

Answer: It supports two operation methods: wireless remote control operation and operation platform operation (manual control is available).
